DOL starter working : 1)When start push button on the direct online motor starter is pressed, contactor coil gets energized and it latches contactor pole due to electromagnetic action. 3 phase supply get applied to the induction motor terminal and motor start running.

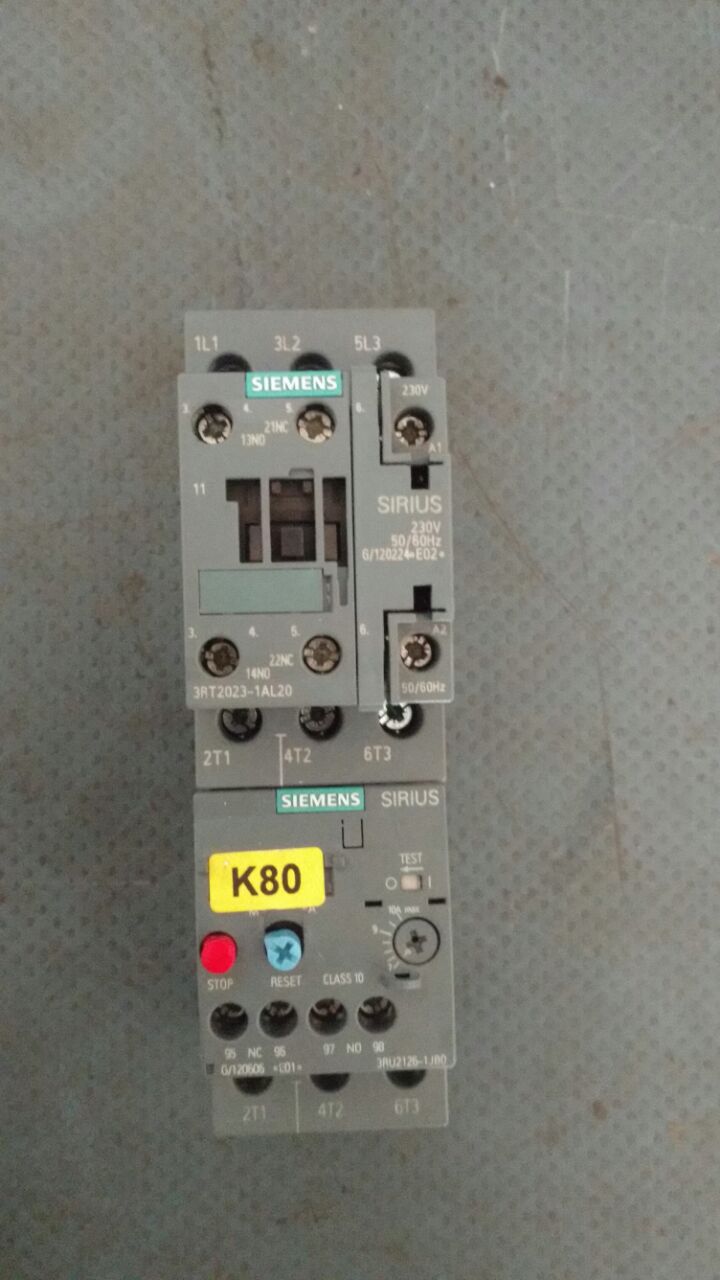

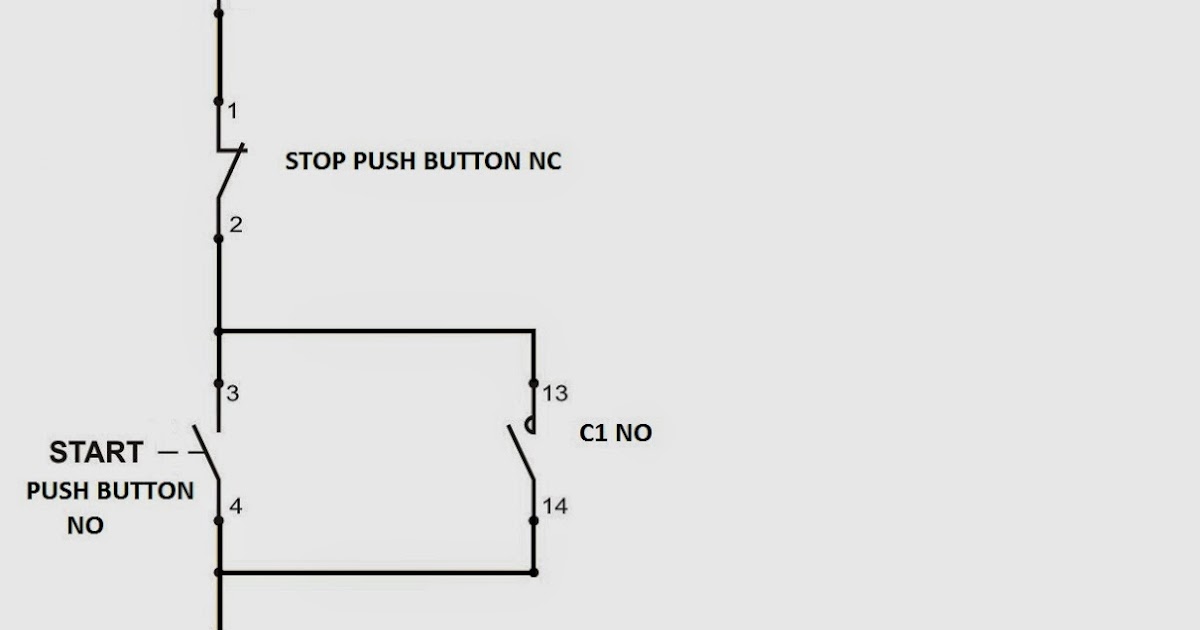

01/12/2015 · Working of DOL Starter. The wiring connection of DOL starter with start and stop buttons is shown in figure below. The DOL starter main terminals are connected between the mains supply terminals and motor terminals while the control circuit is energized with two terminals of three phase supply as illustrated in figure.

In this post, we are going to know the details of each part of DOL Starter Diagram. All parts of the DOL starter Power Circuit Diagram and Control Circuit Diagram are explained. If you read the full article, then you will understand the DOL Starter Working Principle.

13/03/2012 · DOL is Suitable for: A direct on line starter can be used if the high inrush current of the motor does not cause excessive voltage drop in the supply circuit. The maximum size of a motor allowed on a direct on line starter may be limited by the supply utility for this reason.

A small motor can be started by simply plugging it into an electrical a switch . A larger motor required a specialized switching unit called a motor starter.When energized, a direct on line (DOL) starter immediately connects the motor terminals directly to the power supply. Reduced-voltage,dol starters connect the motor to the power supply through a voltage reduction device and increases the ...

19/09/2017 · as full name say direct on line, mean it directly start motor (no any other functions) it just have a single contractor inside. . how it work?? (dol or contractor) - it work same as relay, normal relay are made for low dc voltage and current conta...

Dol starter is simple starting method used to start three phase induction motor. 3 phase direct online starter control diagram wiring connection and working principle and power diagram advantages and disadvantages direct on line starter

Direct-On-Line (DOL) Motor Starter Description The Direct on Line motor starter (DOL) is designed to switch a single or three phase induction motor at rated voltage. It comprises an enclosure in steel or plastic, a contactor, start contact, link wires and stop / start buttons. The Thermal overload is supplied as a …

The simplest form of motor starter for the induction motor is the Direct On Line starter.The Direct On Line Motor Starter (DOL) consist a MCCB or Circuit Breaker, Contactor and an overload relay for protection.Electromagnetic contactor which can be opened by the …

A motor controller might include a manual or automatic means for starting and stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque, and protecting against overloads and faults. There are many types of starters: Direct On Line (DOL) Star delta starter; Auto transformer ...
